Using the Toolchain in an IDE

The CE Toolchain can be used in a variety of Integrated Development Enviornments (IDEs). The below are currently supported - Raise an issue or pull request on GitHub if you would like to see a different one, or if an IDE update changes the current flow.


CLion is a C/C++ IDE made by JetBrains. Open your project in CLion. If you’re making a new one, make a copy of the examples/standalone_examples/template folder to get a boilerplate Makefile.

Open IDE settings

This is found under the drop-down option (File > Settings).


Configure the make executable

WINDOWS ONLY: Set the make executable (Build, Execution, Deployment > Build Tools > Make) to your CEdev bin/make.exe file.


Create CEdev Toolchain

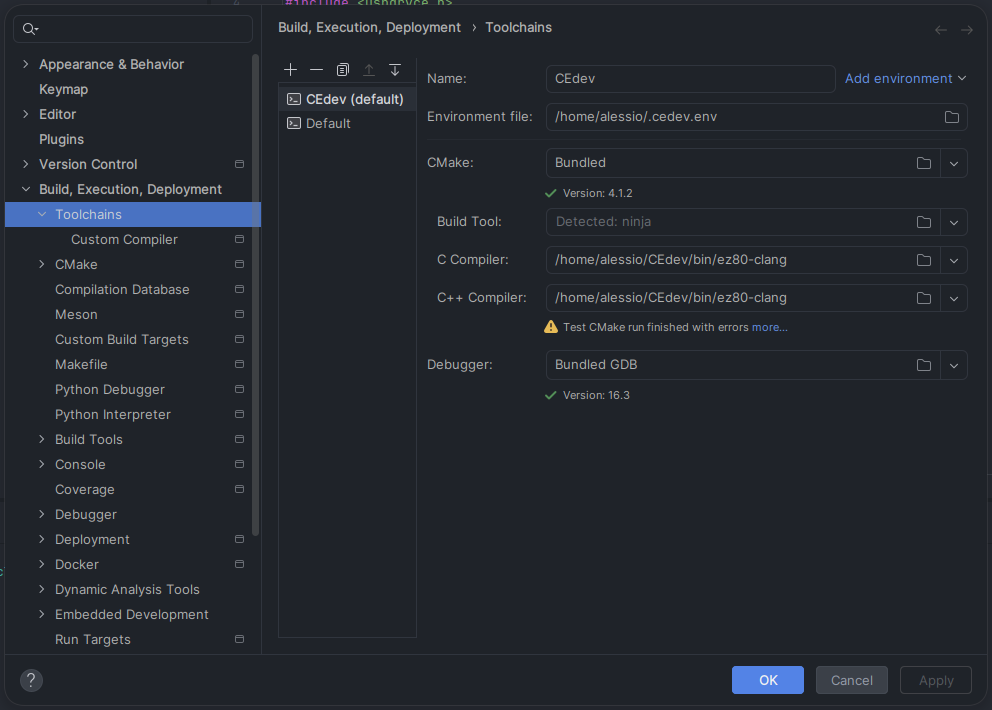

Navigate to the options Build, Execution, Deployment > Toolchains, +, System


On Windows, set the “Build Tool” to CEdev/bin/make.exe and both C compilers to CEdev/bin/ez80-clang.exe

On MacOS/Linux, set both C compilers to CEdev/bin/ez80-clang. MacOS/Linux come with their own system make executable, and the default system one can be used.


CLion will likely warn that “Test CMake run finished with errors”. This is safe to ignore.

Enable CEdev Toolchain

Set the Makefile Toolchain (Build, Execution, Deployment > Makefile) to your newly created toolchain.


Code assistance should be working now. If you opened a demo project, you should be able to hover over the functions to see documentation/usage.


Before this step, make sure you added your CEdev bin folder to your system’s PATH environment variable, otherwise make won’t be able to find the compiler.

At the top right, 5 Run Configurations are auto-generated.

  • Select “all” for the standard build.

  • Select “debug” for a debug build for use with the CEmu debugging toolchain.

  • Only use the Build (the hammer icon) button with these. The Run icon tries to run the generated executables, which fails since .8xp files can’t be run natively on PC.

Visual Studio Code

Open the project using File > Open Folder.

Install Extensions

From the Extensions tab, on the left, install the C/C++, C/C++ Extension Pack, and Makefile Tools extensions.

Open IntelliSense Configurations Screen

Open the Command Palette (Ctrl+Shift+P) and select C/C++: Edit configurations (UI).

Set Compiler Options

Set the value of the “Compiler path” option to be the path to the ez80-clang executable in the bin directory of your toolchain installation, e.g. /home/john/CEdev/bin/ez80-clang. Also set the “Include path” option to the path to the include directory (e.g. /home/john/CEdev/include). Make sure to remove/replace the original value of ${default}, rather than just adding the path at the end.
